KUNAI::DEX::Instruction Class Reference

Base class for the Instructions of the Dalvik Bytecode. More...

#include <dalvik_instructions.hpp>

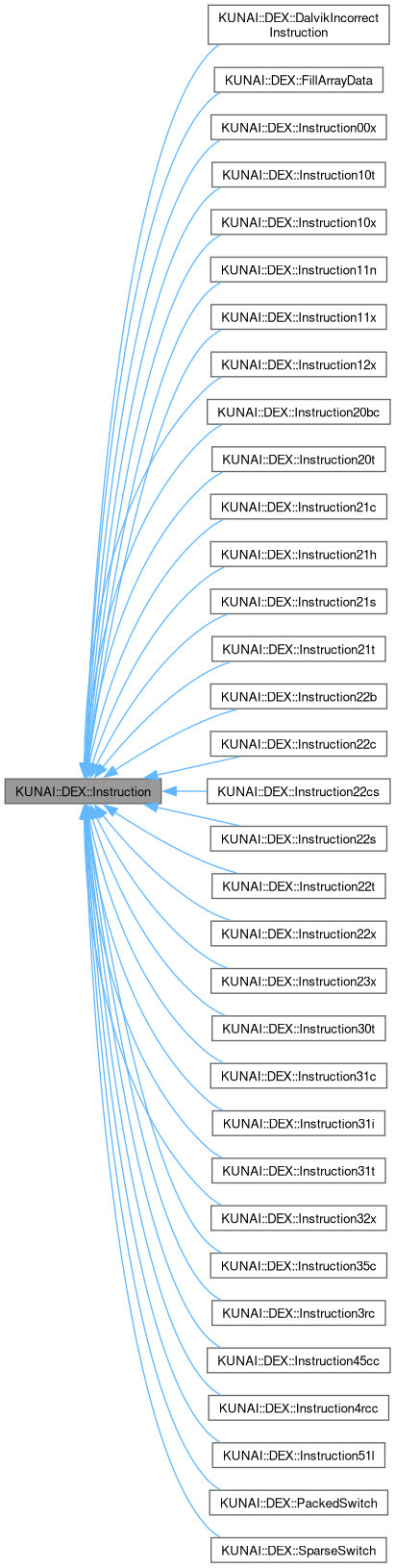

Inheritance diagram for KUNAI::DEX::Instruction:

Public Member Functions
	Instruction (std::vector< uint8_t > &bytecode, std::size_t index, dexinsttype_t instruction_type)
	Constructor of the Instruction, here is applied the parsing of the opcodes.
	Instruction (std::vector< uint8_t > &bytecode, std::size_t index, dexinsttype_t instruction_type, std::uint32_t length)
virtual	~Instruction ()=default
	Destructor of the instruction.
virtual TYPES::Kind	get_kind () const
	Get the kind of instruction, use a DalvikOpcodes function.
virtual dexinsttype_t	get_instruction_type () const
	Get the instruction type from the enum.
virtual std::uint32_t	get_instruction_length () const
	Get the length of the instruction.
virtual std::uint32_t	get_instruction_opcode () const
	Get the opcode of the instruction.
virtual void	set_address (std::uint64_t address)
	Set the address of the instruction.
virtual std::uint64_t	get_address () const
	Get the address of the instruction.
virtual std::string	print_instruction ()
	Return a string with the representation of the instruction.
virtual void	print_instruction (std::ostream &os)
	Print the instruction on a given stream.
virtual const std::span< std::uint8_t > &	get_opcodes ()
	Return the op codes in raw from the instruction.
virtual bool	is_terminator ()
	Check if the instruction is a terminator (branch, ret, multibranch)
virtual bool	has_side_effects () const
	Instruction has or can have some side effect.
virtual bool	may_throw () const
	May throw an exception.

Protected Attributes
std::span< std::uint8_t >	op_codes
	Opcodes of the instruction.
std::uint32_t	length
	Length of the instruction.
std::uint32_t	op
	op code from the instruction
std::uint64_t	address
	address of the instruction

Detailed Description

Base class for the Instructions of the Dalvik Bytecode.

Constructor & Destructor Documentation

Instruction() [1/2]

KUNAI::DEX::Instruction::Instruction ( std::vector< uint8_t > &  bytecode, std::size_t  index, dexinsttype_t  instruction_type  )

inline

Constructor of the Instruction, here is applied the parsing of the opcodes.

Parameters

bytecode
index
instruction_type

Instruction() [2/2]

KUNAI::DEX::Instruction::Instruction ( std::vector< uint8_t > &  bytecode, std::size_t  index, dexinsttype_t  instruction_type, std::uint32_t  length  )

inline

op_codes we can read here for all the classes that derives from Instruction, we have that is the bytecode from the index to index+length

Member Function Documentation

get_address()

virtual std::uint64_t KUNAI::DEX::Instruction::get_address ( ) const

inlinevirtual

Get the address of the instruction.

Returns

address of the instruction

get_instruction_length()

virtual std::uint32_t KUNAI::DEX::Instruction::get_instruction_length ( ) const

inlinevirtual

Get the length of the instruction.

Returns

current length of the instruction

get_instruction_opcode()

virtual std::uint32_t KUNAI::DEX::Instruction::get_instruction_opcode ( ) const

inlinevirtual

Get the opcode of the instruction.

Returns

opcode of the instruction

get_instruction_type()

virtual dexinsttype_t KUNAI::DEX::Instruction::get_instruction_type ( ) const

inlinevirtual

Get the instruction type from the enum.

Returns

dex instruction type

get_kind()

virtual TYPES::Kind KUNAI::DEX::Instruction::get_kind ( ) const

inlinevirtual

Get the kind of instruction, use a DalvikOpcodes function.

Returns

TYPES::Kind of the instruction

get_opcodes()

virtual const std::span< std::uint8_t > & KUNAI::DEX::Instruction::get_opcodes ( )

inlinevirtual

Return the op codes in raw from the instruction.

Returns

constant reference with op codes in raw

has_side_effects()

virtual bool KUNAI::DEX::Instruction::has_side_effects ( ) const

virtual

Instruction has or can have some side effect.

Returns

boolean indicating if a side effect exists

is_terminator()

virtual bool KUNAI::DEX::Instruction::is_terminator ( )

inlinevirtual

Check if the instruction is a terminator (branch, ret, multibranch)

Returns

true if instruction is a terminator instruction

may_throw()

virtual bool KUNAI::DEX::Instruction::may_throw ( ) const

virtual

May throw an exception.

Returns

boolean indicating if instruction can throw an exception

print_instruction() [1/2]

virtual std::string KUNAI::DEX::Instruction::print_instruction ( )

inlinevirtual

Return a string with the representation of the instruction.

Returns

string with instruction

Reimplemented in KUNAI::DEX::Instruction10x, KUNAI::DEX::Instruction12x, KUNAI::DEX::Instruction11n, KUNAI::DEX::Instruction11x, KUNAI::DEX::Instruction10t, KUNAI::DEX::Instruction20t, KUNAI::DEX::Instruction20bc, KUNAI::DEX::Instruction22x, KUNAI::DEX::Instruction21t, KUNAI::DEX::Instruction21s, KUNAI::DEX::Instruction21h, KUNAI::DEX::Instruction21c, KUNAI::DEX::Instruction23x, KUNAI::DEX::Instruction22b, KUNAI::DEX::Instruction22t, KUNAI::DEX::Instruction22s, KUNAI::DEX::Instruction22c, KUNAI::DEX::Instruction22cs, KUNAI::DEX::Instruction30t, KUNAI::DEX::Instruction32x, KUNAI::DEX::Instruction31i, KUNAI::DEX::Instruction31t, KUNAI::DEX::Instruction31c, KUNAI::DEX::Instruction35c, KUNAI::DEX::Instruction3rc, KUNAI::DEX::Instruction45cc, KUNAI::DEX::Instruction4rcc, KUNAI::DEX::Instruction51l, KUNAI::DEX::PackedSwitch, KUNAI::DEX::SparseSwitch, KUNAI::DEX::FillArrayData, and KUNAI::DEX::DalvikIncorrectInstruction.

print_instruction() [2/2]

virtual void KUNAI::DEX::Instruction::print_instruction ( std::ostream &  os )

inlinevirtual

Print the instruction on a given stream.

Parameters

os	stream where to print the instruction

Reimplemented in KUNAI::DEX::Instruction10x, KUNAI::DEX::Instruction12x, KUNAI::DEX::Instruction11n, KUNAI::DEX::Instruction11x, KUNAI::DEX::Instruction10t, KUNAI::DEX::Instruction20t, KUNAI::DEX::Instruction20bc, KUNAI::DEX::Instruction22x, KUNAI::DEX::Instruction21t, KUNAI::DEX::Instruction21s, KUNAI::DEX::Instruction21h, KUNAI::DEX::Instruction21c, KUNAI::DEX::Instruction23x, KUNAI::DEX::Instruction22b, KUNAI::DEX::Instruction22t, KUNAI::DEX::Instruction22s, KUNAI::DEX::Instruction22c, KUNAI::DEX::Instruction22cs, KUNAI::DEX::Instruction30t, KUNAI::DEX::Instruction32x, KUNAI::DEX::Instruction31i, KUNAI::DEX::Instruction31t, KUNAI::DEX::Instruction31c, KUNAI::DEX::Instruction35c, KUNAI::DEX::Instruction3rc, KUNAI::DEX::Instruction45cc, KUNAI::DEX::Instruction4rcc, KUNAI::DEX::Instruction51l, KUNAI::DEX::PackedSwitch, KUNAI::DEX::SparseSwitch, KUNAI::DEX::FillArrayData, and KUNAI::DEX::DalvikIncorrectInstruction.

set_address()

virtual void KUNAI::DEX::Instruction::set_address ( std::uint64_t  address )

inlinevirtual

Set the address of the instruction.

Parameters

address

new address of the instruction

---

The documentation for this class was generated from the following file:

• kunai-lib/include/Kunai/DEX/DVM/dalvik_instructions.hpp
